Embroidery File Format Explained: A Beginner’s Guide

You’ve just unboxed your shiny new embroidery machine, threaded it with excitement, and found a beautiful design online. You download it, pop the USB stick in, and… nothing happens. Your machine acts like the file is invisible. This frustrating moment is a universal rite of passage for new embroiderers, and it almost always boils down to one thing: the embroidery file format.

Think of these formats as languages. Your sewing machine is a brilliant robot, but it only understands one or two specific dialects. Sending it a file in the wrong format is like handing a French phrasebook to someone who only speaks Japanese. This guide will translate the jargon, explain the most common formats, and give you the confidence to find, convert, and use the right file for your machine every single time.

What is an Embroidery File Format, Really?

At its core, an embroidery file is not a picture. It’s a set of highly detailed, line-by-line instructions. When you open a .PES or .JEF file on your computer, you might just see a simple preview image. But hidden inside is a complex code that tells your machine everything it needs to know:

Needle Position: The exact X and Y coordinates for every single stitch.
Stitch Type: Whether to make a satin stitch, a fill stitch, or a running stitch.
Thread Color: When to stop and prompt for a color change, often referencing a specific brand’s thread palette.
Machine Commands: Instructions to trim the thread, jump to a new section without stitching, or pause for placement.

The file format is the structure or “language” this code is written in. Different machine brands developed their own proprietary formats over the years, which is why a file for a Brother machine usually won’t work on a Janome.

The Major Machine-Specific Formats (The Brand “Languages”)

This is where you need to match the format to your machine’s brand. Check your manual or the manufacturer’s website to confirm.

.PES: The primary format for Brother and Babylock embroidery machines. It’s one of the most common formats found online due to Brother’s huge market share. Newer models may also use .PES or updated versions like .PES2.
.JEF & .JEF+: The native format for Janome and New Home machines. .JEF+ files can contain additional information for machines with more advanced features.
.VP3 & .HUS: The go-to formats for Husqvarna Viking and Pfaff embroidery machines. You’ll often see both listed, with .VP3 being very standard for modern models.
.ART & .ART80: Used by Bernina machines. The number suffix (like ART50, ART80) often corresponds to the specific model series, so getting the right version is key.
.EXP: Used by Melco industrial machines and some older Bernina models. It’s a very efficient commercial format.
.SEW: The native format for Janome’s lower-cost line and some Elna machines.
.XXX: The primary format for Singer embroidery machines.

The Universal & Commercial Formats (The “Lingua Franca”)

Some formats are designed to work across many machines or are the standard in professional settings.

.DST: Arguably the most important format to know. Developed by Tajima, it is the undisputed industry standard for commercial embroidery. Almost every industrial machine on the planet reads DST. Because of this, most home machines can also read it. It’s a fantastic, reliable “universal” format, though it may not support advanced features like automatic thread color names for your specific screen.
.EXP: As mentioned, it’s both brand-specific (Melco/Bernina) and a widely adopted commercial standard.
.PEC & .PCM: These are older, often derivative formats. .PEC is sometimes used for Brother/Babylock editing and may contain less data than a .PES file.

The Home Studio & Digitizing Formats

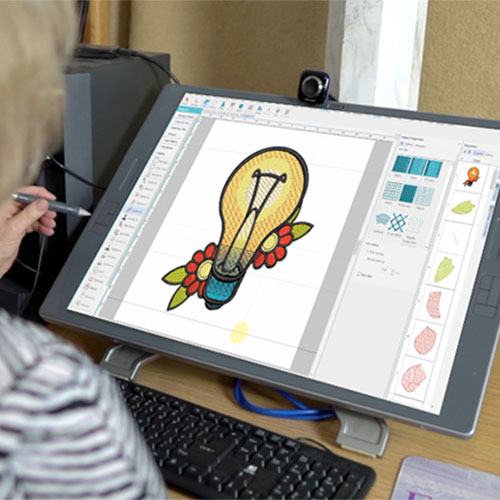

These are the “workshop” files. You typically don’t stitch from them, but you use them to create or edit designs.

.EMB & .CSD: These are native project files for popular home digitizing software like EmbridgeryWorks and SewArt. They contain all the editable objects, stitch types, and colors. You save from these programs into a machine format like .PES or .DST.
.AI, .EPS, .SVG: These are vector graphic formats from programs like Adobe Illustrator. They are not embroidery files. They are the source artwork that a person (or auto-digitizing software) uses to create an embroidery file. You cannot load an .AI file directly into your machine.

How to Make Sure You Have the Right Format

Step 1: Identify Your Machine’s Native Tongue.
This is your first priority. Look in your machine’s manual under “specifications” or “compatible formats.” If you’ve lost the manual, a quick online search of your model number and “embroidery file format” will give you the answer.

Step 2: Source Designs in Your Format (or One That Converts Well).
When shopping on sites like Etsy, EmbroideryDesigns.com, or UrbanThreads.com, use the website filter to show only designs available in your format (e.g., .PES for Brother). If your exact format isn’t available, .DST is your next best bet for high compatibility.

Step 3: Convert When Necessary.
If you find a must-have design in the wrong format, you need to convert it. You have two main options:

Use Conversion Software: Programs like EmbridgeryWorks, SewWhat-Pro, or the free Ink/Stitch extension for Inkscape can read one format and save it as another.
Use an Online Converter: Websites like stitchly.com or convertio.co offer quick, often free conversions for simple designs. Crucial Tip: Always stitch out a converted design on scrap fabric first to check for errors.

Common Problems & Troubleshooting

“File Not Supported” Error: This almost always means the format is wrong. Double-check your machine’s required format and the file extension on your USB stick.
Design Stitches Out with Weird Colors or Jumps: This is often a conversion error or a poorly digitized original file. The stitch data got scrambled. Try sourcing the design from a different seller or in a different format.
The Design is the Wrong Size on My Hoop: The file itself contains sizing information. Use your machine’s editing functions or software to resize it before stitching, but be careful—enlarging a design more than 10-20% can ruin stitch quality.
Where Are All the Free Formats? Many free designs come only in .DST or .PES because they are the most common. This is another reason why knowing how to convert a file is a superpower.

Building Your Digital Library: Best Practices

Keep the Originals: Always save a copy of the design file you downloaded, before any editing or converting, in a dedicated folder on your computer. This is your master backup.
Organize by Format & Project: Create folders like “.PES_Flowers” or “.DST_Holiday” so you can find things quickly.
Save Edited Versions Separately: If you resize or combine designs on your machine’s screen, save the edited version with a new name (e.g., “Floral_Monogram_Large”) so you don’t overwrite your original.

Conclusion: Speak Your Machine’s Language with Confidence

Understanding embroidery file format is the first step from being a beginner who follows instructions to an empowered creator who makes the technology work for them. It demystifies why some designs work and others don’t, and it opens up a world of possibilities. No longer are you limited to the designs that came with your machine; you can shop on thousands of websites, swap files with friends who have different machines, and even start learning to create your own.

Start by doing a quick audit. Find your machine’s manual and note its preferred format. Then, look at the files on your USB stick—what extensions do they have? This simple act of recognition is powerful. The next time you download a design, you’ll confidently check for compatibility, convert it if needed, and load it up knowing it will stitch out perfectly. Your machine is a powerful partner, and now you know how to communicate with it clearly.
